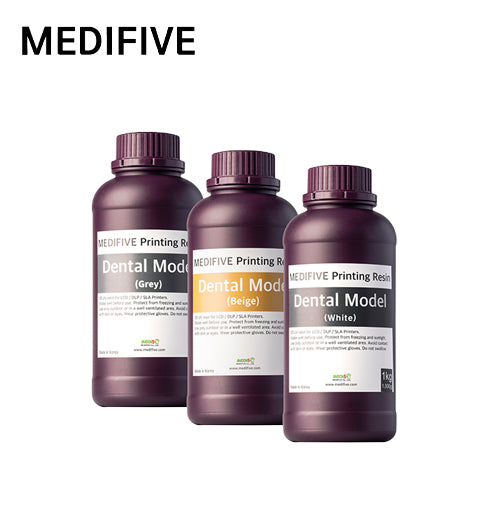

Dental Model Resin BEIGE, GRAY

Beige Resin

₱8,980.00

Dental Model Resin BEIGE, GRAY

₱8,980.00

User optimization and open materials allow the use of third-party resins.

CARIMA Dental Model Resin (Gray / Beige)

High Precision | Easy 3D Printing

Product Description

CARIMA Dental Gray and Beige are resins with colors closely resembling dental plaster materials. Their low viscosity makes them easy to use, even for beginners.

These resins provide the high level of detail and precision required for printing dental models. They offer an attractive appearance, with both matte and glossy finishes depending on the viewing angle.

They also provide excellent repeatability and durability, making them optimized for dental model 3D printing.

01 — Storage and Disposal Guidelines

Storage Conditions

Store the resin container at room temperature with the lid tightly closed, in a dry environment.
After use, it is recommended to filter the remaining resin through a filter or sieve to remove residual printed particles before returning it to the resin bottle, rather than storing it in the equipment's resin tray.
Recommended usage period: Within 12 months from the date of purchase.

Disposal Guidelines

Dispose of or incinerate the resin according to local regulations.
Refer to the Material Safety Data Sheet (MSDS) for accurate disposal information.

02 — Packaging Information

Product: Dental Model Resin
Standard Packaging: 1 kg
Larger packaging sizes are available upon request.

03 — Recommended 3D Printing Parameters

Dental Model Resin can generally be printed with suitable parameters using 3D printers operating at 385 nm or 405 nm wavelengths.

Recommended Settings for CARIMA IMD / IMD-C (Gray / Beige)

Parameter	50 μm Layer	100 μm Layer
Equipment	IMD / IMD-C	IMD / IMD-C
Layer Thickness	50 μm	100 μm
Standard Exposure Time	0.8 sec	1.4 sec
Initial Exposure Time	5 sec	5 sec
Standard Resin Waiting Time	3 sec	3 sec
Initial Resin Waiting Time	5 sec	5 sec
Release/Peeling Speed	1 mm/sec	1 mm/sec
Build Platform Movement Distance	3 mm	3 mm
Post-Curing (CL300Pro)	1 min 30 sec	1 min 30 sec

Note: These values are based on the manufacturer's internal testing. Optimal settings may vary depending on the 3D printer, equipment condition, resin storage condition, and printed model design.

04 — 3D Printing Process

Step 01 — Material Preparation

Prepare the resin at room temperature, avoiding excessively high or low temperatures.
Shake the resin thoroughly before use to prevent sedimentation.
Pour the resin slowly in several stages to avoid introducing air bubbles.
If bubbles appear, remove them completely before starting the printing process.

Step 02 — Printing

Use the appropriate printing settings for the resin.
Print using the configured equipment parameters.
Avoid applying external impact or vibration to the printer during operation.

05 — Resin Precision

Minimum Requirements

Evaluation Parameter	Value
Support Contact Thickness	400 μm
XY Positive-Angle Feature Thickness	200 μm
XY Negative-Angle Feature Thickness	300 μm
Z-Axis Positive-Angle Feature Thickness	200 μm
Overhang Printing Difficulty	3,000 mm
Assembly Tolerance	150 μm

Recommended Requirements

Evaluation Parameter	Value
Support Contact Thickness	700 μm
XY Positive-Angle Feature Thickness	400 μm
XY Negative-Angle Feature Thickness	500 μm
Z-Axis Positive-Angle Feature Thickness	300 μm
Overhang Printing Difficulty	2,000 mm
Assembly Tolerance	150 μm

Note: The minimum requirements are based on the manufacturer's standard test specimens. Print quality may vary depending on the structure and shape of the printed model. Using the recommended settings is advised whenever possible.

06 — Cleaning and Post-Curing Process

1. Cleaning Process

Step 01 — Initial Cleaning

Place the printed model into an ultrasonic cleaner containing the cleaning solution or IPA (isopropyl alcohol) currently in use.
Do not soak for too long.
Run the ultrasonic cleaner for 3 minutes.
Remove the model, place it in fresh cleaning solution or IPA, and clean again for another 3 minutes.

Step 02 — Rinsing

- Remove the printed model and lightly rinse it with cleaning solution.

Step 03 — Post-Curing and Drying

Post-cure the model using the CL300Pro curing unit for 1 minute and 30 seconds.
After curing, either:
- Allow the model to dry at room temperature for at least 24 hours, or
- Dry it in an oven at 60°C for 1 hour and 30 minutes.

Caution: Slight yellowing may occur as the post-curing time increases.

2. Post-Curing Parameters

Parameter	Specification
Post-Curing Equipment	CARIMA CL300Pro
Curing Level	Lv12
Number of Cycles	1
Curing Time	1 minute 30 seconds

Additional Notes:

The CL300Pro may have variations in light intensity between units, even at Lv12. Adjust the recommended curing time appropriately.
Since the bottom surface may not be fully cured, it is recommended to rotate the model and cure multiple surfaces separately.

3. Finishing Process

Carefully remove the support structures after post-curing.
If necessary, polish or sand the surface to achieve a smoother finish.

Important: These procedures are general guidelines only. Actual printing and curing conditions may vary depending on the printer and the shape of the printed model.

Curing times may differ according to model size and structure, and printing parameters may require adjustment when using a different 3D printer.

07 — Recommended Resin Applications

Recommended Applications	Not Suitable For
Medical models	Medical instruments
Figurine models	Devices subjected to prolonged mechanical stress
Dental models

Product Summary: CARIMA Dental Model Resin (Gray / Beige) is designed for high-precision 3D printing of dental and other models, offering detailed reproduction, easy handling, and good durability. It is intended for model production rather than medical instruments or devices subjected to prolonged mechanical stress.
